SHF260

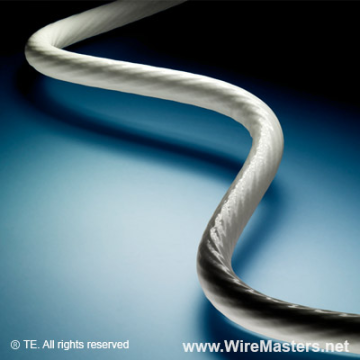

SHF-260 highly flexible wire satisfies the need for high-temperature resistance and maximum performance in large-diameter power feeder applications where easy routing and durability are key. The cable’s high flexibility allows it to be routed in extremely tight spaces—often shortening the required run—with no wrinkling or cracking of the insulation. Flexibility of the SHF-260 wire serves to reduce stress on the contact and to reduce the mating and unmating forces normally associated with large circular connectors, such as MIL-DTL-5015 and MIL-DTL-83723. The ability to route the cable in tight spaces may allow you to increase gauge size and eliminate the need to split power. Available in 24 AWG to 4/0 AWG sizes, typical uses for SHF-260 wire include primary and secondary power distribution applications where high current is needed and where routing in tight spaces is essential. In addition to excellent flexibility and routability, SHF-260 wire provides outstanding chemical and fluid resistance, excellent electrical properties, and high-temperature performance to 260°C.
