PIC Wire & Cable

E6A3824 a Cat 6a Cable, 4 Pair, 10 Gigabit ethernet cable by PIC, rated at 100 Ohm.

WME6A3824 MFG #: PIC E6A3824
In Stock
E6A3824 Image
  • Cable Type/Protocol: Ethernet Cat6a
  • Conductor Count: 4 Pair
  • Gauge: 24
  • Impedance: 100
  • Temp: 200

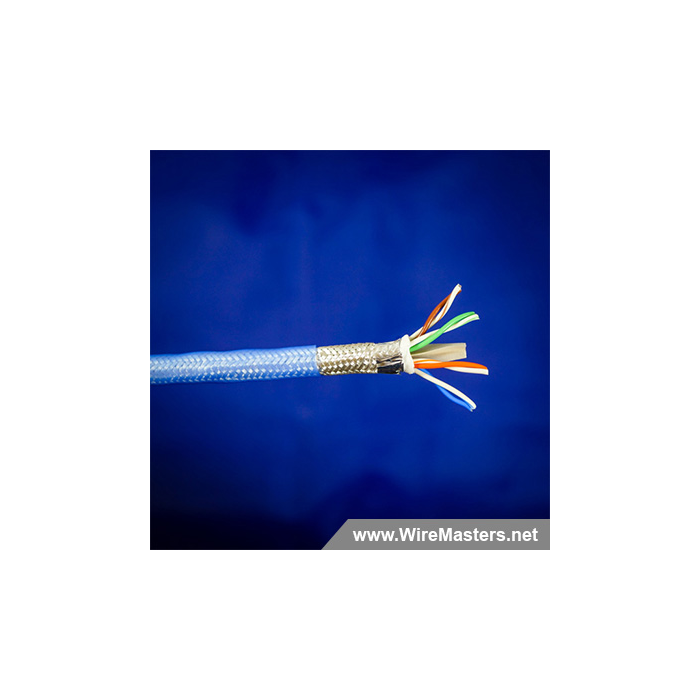

E6A3824: 100 Ohm Cat6a Ethernet Cable, 4 Pairs, 24 AWG stranded silver-plated copper. 10Gbps, double-shielded (foil & silver-plated copper). Fluoropolymer spline, white PTFE laser-markable jacket. Made by PIC.
QTY
Add to List
  • Cap. pF/Ft
  • Color
  • Inner Conductor Material
  • Insulation
  • Manufacturer
  • Min Operating Temperature
  • Overall Diameter
  • Primary Wire Colors
  • Shield
  • Vp %
  • Weight
  • Weight lbs/1000 ft
14.5
White
Silver Plated Copper
PTFE
PIC Wire and Cable
-55
0.26
24 AWG stranded silver-plated, copper conductors
Silver Plated Copper
70
4.6
46
