RCN9034-28
OUT OF STOCK
Volume Pricing
| 1 | $30.55 / FT |
| 250 | $29.20 / FT |
| 500 | $27.95 / FT |
| 1000 | $26.81 / FT |
| 2500 | $25.76 / FT |
Inventory Location
| Arizona | 0 FT |
| Gelnhausen | 0 FT |
| Mexicali | 0 FT |
| Queretaro | 0 FT |
| Swindon | 0 FT |
| Tennessee | 0 FT |
| Texas | 0 FT |
Disclaimer
Imagery is for general reference and may not represent the actual part number. Not all products are available to every country or customer. Inventory updated daily. All stock is subject to prior sale.
| Price Unit | FT |
| Item Extra Description | RCN9034-28 | Cat6a GORE® Aerospace Ethernet Cables |
| Item Description | Discover the RCN9034-28 Ethernet Cable, an engineering marvel from W. L. Gore & Associates, Inc., designed to redefine connectivity in aerospace and military applications. This high-speed Ethernet cable is equipped with Silver-Plated Copper Alloy conducto |
| Manufacturers | W. L. Gore & Associates |
| Manufacturer Part Number | RCN9034-28 |
| Gauge | 28 |
| Max Temp | 200 |
| Cap. pF/Ft | 13 |
| Weight lbs/1000 ft | 25 |
| Impedance | 100 |
| Manufacturer | WL Gore |
| Conductor Count | 4 Pair |
| Temp | 200 |
| Min Operating Temperature | -65 |
| Overall Diameter | 4.6 |
| Weight | 3.72 |
| Insulation | Engineered Fluoropolymer |
| Shield | Aluminized Polymide |
| Inner Conductor Material | Silver-Plated Copper Alloy |
| Color | White (Laser Markable) |
| Specification | SAE AS6070 |
| Cable Type/Protocol | Ethernet Cat6a |
Elevate Your Aerospace and Military Communications with the RCN9034-28 Ethernet Cable
W. L. Gore & Associates, Inc. (Gore) proudly presents the RCN9034-28 Aerospace High Speed Ethernet Cable, a revolutionary development in aerospace and military connectivity. This high-performance cable is crafted to support the exigencies of high-speed data communication in challenging operational scenarios.
Advanced Design and Materials

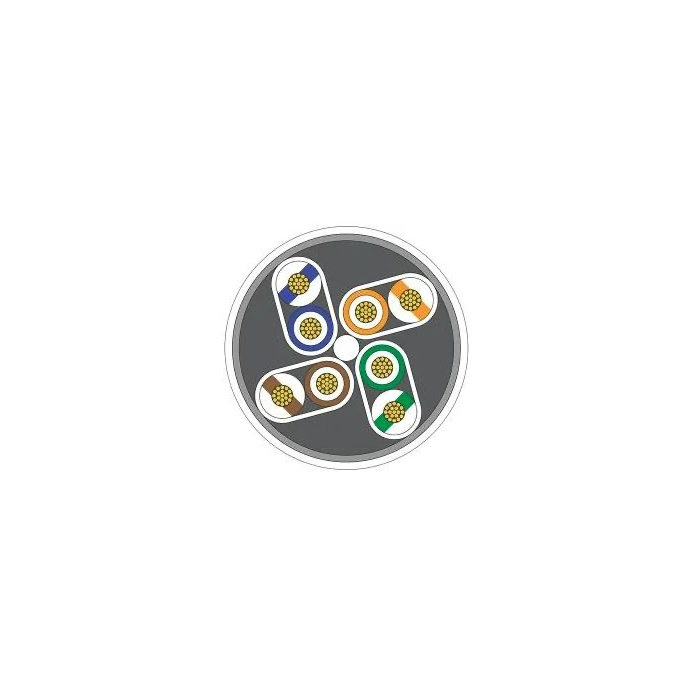

The RCN9034-28 features intricately assembled four shielded twisted pairs, employing sophisticated shielding techniques to assure optimal signal clarity and minimal electromagnetic interference. It includes AWG 28(19 / 40) SPAL (Silver-Plated Copper Alloy) conductors, offering exceptional electrical conductivity and reduced signal loss. An aluminized polyimide overall shield ensures at least 92% coverage, complemented by an engineered fluoropolymer EF100 jacket for unparalleled durability and environmental resistance.
Key Features and Specifications
- Engineered Impedance: Precisely set at 100 +10 -5 Ω for critical data integrity.
- Operating Temperature Range: From -65° C to +200° C, suitable for extreme conditions.
- Electrical Performance: Time delay of 1.29 nSEC/FT, capacitance of 13.0 pF/FT, and maximum attenuation rates support high-speed data transmission.
- Category 6A Compliance: Meets TIA568C.2 Category 6A standards for lengths up to 45 meters, with superior NEXT (Maximum) performance.
The RCN9034-28 Ethernet Cable is a testament to Gore's commitment to pushing the boundaries of technology and quality. With user-friendly features such as FEP/ePTFE fillers for flexibility and color-coded conductors for easy installation, this cable simplifies deployment while ensuring robust performance. Whether used in aviation systems or ground-based military applications, the RCN9034-28 stands as a beacon of reliability for high-speed digital data communications.
Discover Unmatched Connectivity Solutions
Experience the apex of communication technology with Gore's RCN9034-28 Ethernet Cable, where innovative engineering meets the uncompromising requirements of aerospace and military applications, ensuring unmatched connectivity solutions.
