M17/196-00001

M17/196-00001 When it comes to RF coaxial cables, the M17/196-00001 is a name that resonates with quality and precision. Approved for use across all Departments and Agencies of the Department of Defense, this cable is not just a product but a testament to engineering prowess.

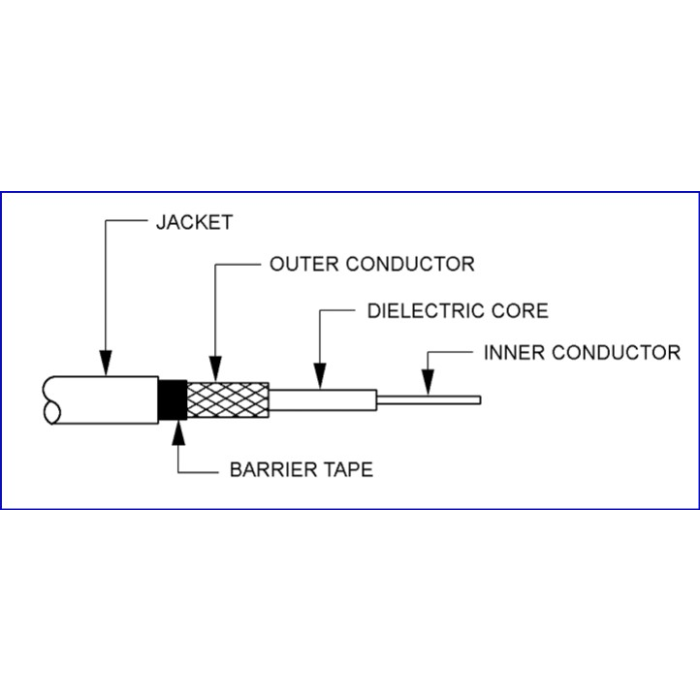

Inner Conductor: At the heart of this cable lies its inner conductor, meticulously crafted with seven strands of copper-covered steel wire. Each strand boasts a diameter of .0063 inches, culminating in an overall diameter of .0189 inches (± .0010). This intricate design ensures optimal signal transmission, a crucial factor in RF applications.

Dielectric Core: Surrounding the inner conductor is the Type A-1 dielectric core, composed of solid polyethylene. With a diameter of .060 inches (± .003), this core serves as an insulator, preventing signal leakage and ensuring the integrity of the transmitted signal.

Outer Conductor: Shielding the dielectric core is the outer conductor, a single braid of AWG No. 38 tinned copper wire. This conductor, with a maximum diameter of .083 inches, offers a nominal coverage of 85.6%. Such meticulous design ensures minimal interference, making the M17/196-00001 a preferred choice for high-frequency applications.

Barrier Tape: Enhancing the cable's resilience is a .001-inch thick polyester tape, complemented by a .002-inch thick layer of aluminum. This barrier tape, applied with a 50% overlap and the aluminum face directed towards the outer conductor, fortifies the cable against external elements.

Jacket: Encasing these components is the robust jacket made of cross-linked polyolefin. With a diameter ranging between .105 to .115 inches and a minimum thickness of .008 inches, this jacket offers protection against physical damages, ensuring the cable's longevity.

Unparalleled Physical Properties The M17/196-00001 isn't just about construction; it's a marvel in terms of physical properties. From flame propagation to heat distortion, this cable has been rigorously tested to meet the stringent standards of military applications.

Flame Propagation: In environments where fire hazards are a concern, this cable's flame propagation properties are invaluable.

Acid Gas Generation: With a maximum of 2.0%, this cable ensures minimal acid gas generation, crucial in preserving equipment integrity.

Halogen Content: At a mere 0.2%, the halogen content is kept minimal, reducing the risk of corrosive and toxic gases during combustion.

Immersion Test: The tensile strength and elongation properties, even post-immersion, are commendable, ensuring the cable's performance isn't compromised in moist conditions.

Toxicity Index: With a maximum value of 5, the toxicity index is well within safe limits, ensuring user safety.

In Conclusion The M17/196-00001, as detailed in the MIL-DTL-17/196C w/AMENDMENT 2, is more than just a coaxial cable; it's a testament to engineering excellence. Whether you're a defense contractor, an RF engineer, or a technical enthusiast, understanding the nuances of this cable can provide insights into the meticulous design and rigorous testing that military-grade equipment undergoes.

For those keen on diving deeper, the original document is sourced from assist.dla.mil. However, always ensure you're referring to the latest version for the most accurate and up-to-date information.

In the ever-evolving world of RF technology, the M17/196-00001 stands as a beacon of reliability, precision, and quality. Its unparalleled construction and physical properties make it a preferred choice for those who refuse to compromise on quality.

QPL manufacturers of this cable are Times Microwave Systems and Marmon Aerospace and Defense. Their approved status can be seen on the QPD Database.

The NSN for this cable is 6145013840431.
