M17/176-00002

SKU WMRGM17/176-00002
The M17/176-00002 MIL-DTL-17 coaxial cable features a 77-ohm impedance, making it ideal for high-performance military and aerospace applications. Engineered for reliability, it offers low attenuation and robust EMI shielding, ensuring consistent data transmission in challenging environments. With a high-end temperature rating of up to 200°C, this cable is built to withstand extreme conditions and meets rigorous industry standards.

IN STOCK

129203 FT
UNIT PRICE
$3.17 / FT
TOTAL
$3.17

Volume Pricing

1 $3.17 / FT
250 $3.03 / FT
500 $2.90 / FT
1000 $2.78 / FT
2500 $2.67 / FT

Inventory Location

Arizona15813 FT
Gelnhausen0 FT
Mexicali0 FT
Queretaro0 FT
Swindon0 FT
Tennessee7964 FT
Texas105426 FT

Disclaimer

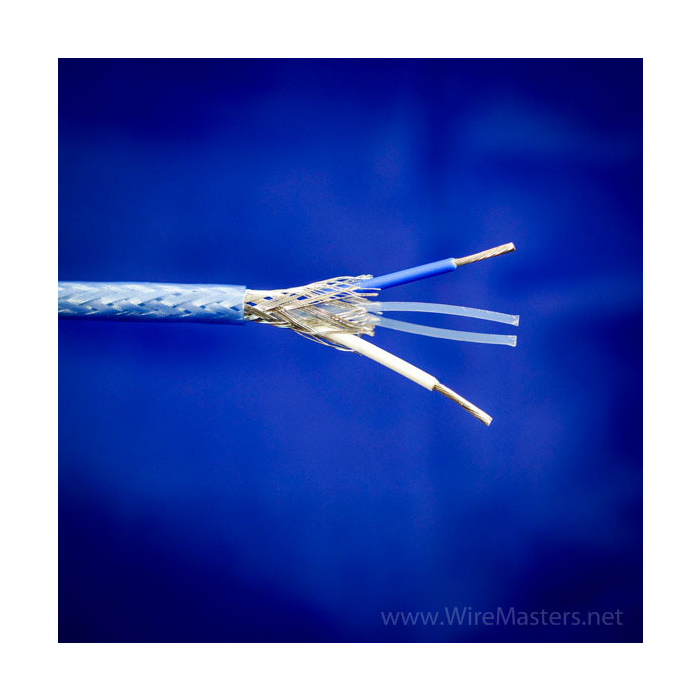

Imagery is for general reference and may not represent the actual part number. Not all products are available to every country or customer. Inventory updated daily. All stock is subject to prior sale.

Specifications
Item Extra Description M17/176-00002 Jacketed Coax Cable
Item Description The M17/176-00002 MIL-DTL-17 coaxial cable features a 77-ohm impedance, making it ideal for high-performance military and aerospace applications. Engineered for reliability, it offers low attenuation and robust EMI shielding, ensuring consistent data tran
Price Unit MFT
Manufacturers Harbour Industries
Manufacturer Part Number RGM17/176-00002
Capacitance 24
Voltage Rating 1000
Velocity of Propigation (VP) 71
Weight 0.018
NSN 6145-01-232-7484
Dielectric PTFE 0.042
Jacket Type PFA-XIII 0.129
Impedance 77
Temp 200
OuterJacket 21 - Single Extruded Clear PFA
Max Temp 200
Product Overview

M17/176-00002 MIL-DTL-17 Coaxial Cable

The M17/176-00002 is a high-performance MIL-DTL-17 coaxial cable, expertly designed to meet the rigorous demands of military and aerospace environments. With its superior shielding and low attenuation, this cable ensures reliable data transmission, even in the most challenging conditions.

Key Features

  • Low Attenuation: Guarantees signal integrity over long distances, essential for critical communications.
  • Robust EMI Shielding: Protects against electromagnetic interference, ensuring clear and stable signal transmission.
  • Durable Construction: Manufactured with high-quality materials to withstand harsh environments.
  • Temperature Resistant: Operates effectively across a wide temperature range, enhancing reliability.

Technical Specifications

Specification Details
Impedance 77 Ohms
Capacitance 24 pF/ft
Dielectric PTFE 0.042 in
Jacket Type PFA-XIII 0.129 in
Outer Jacket Single Extruded Clear PFA
NSN (National Stock Number) 6145-01-232-7484
Velocity of Propagation (VP) 71%
Voltage Rating 1000 Volts
Weight 0.018 lbs/ft
Temperature Range -55°C to +200°C
Shielding Type Silver-plated copper
Conductor Material Silver-plated copper
Supplier Amphenol, Harbour Industries

Applications

  • Military Communications: Ensures secure and reliable communication in mission-critical scenarios.
  • Aerospace Systems: Ideal for use in aircraft systems, offering lightweight yet durable construction.
  • Satellite Communications: Provides excellent signal integrity in space-based applications.
  • RF and Microwave Systems: Suitable for high-frequency applications requiring low loss and high performance.

Contact Us Today: For more information or to request a quote, contact us.
