1594-480
IN STOCK
Inventory Location
| Arizona | 0 FT |
| Mexicali | 0 FT |
| Queretaro | 0 FT |
| Tennessee | 149 FT |
| Texas | 0 FT |
Disclaimer
Imagery is for general reference and may not represent the actual part number. Not all products are available to every country or customer. Inventory updated daily. All stock is subject to prior sale.
| Item Description | Experience unparalleled performance with our 50 Ohm Light Weight Coaxial Cable (Part Number: 1594-480). Engineered with fluoropolymer construction, this cable offers reliable signal transmission and durability for demanding high-speed applications. Ideal |
| Price Unit | MFT |
| Capacitance | 26 pF/Ft. |
| Velocity of Propigation (VP) | 77 |
| Manufacturer | Carlisle |
| Weight | 235 |
| Dielectric | Air spaced polytetrafluoroethylene (PTFE) tape |
| Dielectric Thickness | 0.408 |
| Outer Shield | Round silver plated copper having 95% minimum coverage |
| Jacket Type | Extruded fluorinated ethylene propylene (FEP)Color: Transparent brown |
| Impedance | 50 |
| Temp | -55 |
| Shield | S - Single SPC Round |
| Conductor Count | 1 |
| Center Conductor | Silver Plated Copper |
Introducing the 50 Ohm Light Weight Coaxial Cable: High-Speed Performance and Exceptional Quality
Scope:
Experience the pinnacle of cable technology with our 50 Ohm Light Weight Coaxial Cable, engineered with a fluoropolymer construction for superior performance. Ideal for high-speed applications, this cable is designed to meet rigorous industry standards, ensuring reliable and efficient signal transmission.

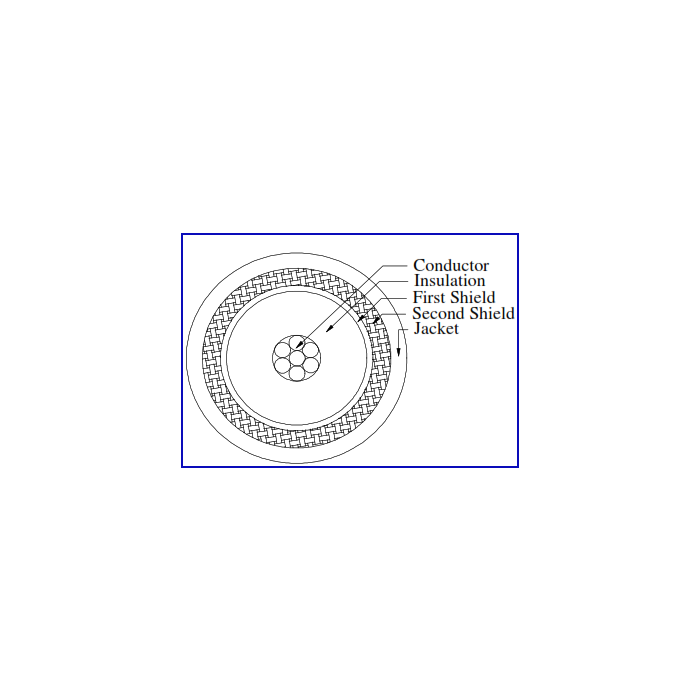

Construction Details:
- Conductor: Comprised of 7 strands of .0483 silver-plated copper, the conductor guarantees excellent conductivity and durability.
- Dielectric: Air-spaced polytetrafluoroethylene (PTFE) tape provides optimal insulation, maintaining signal integrity.
- Inner Shield: Featuring flat silver-plated copper with a 95% minimum coverage for enhanced protection against electromagnetic interference.
- Second Shield: Round silver-plated copper, also with a 95% minimum coverage, ensures additional shielding and signal clarity.
- Jacket: Extruded fluorinated ethylene propylene (FEP) with a transparent brown color, offering robust protection and easy identification.
Dimensions:
- Diameter: .145 ± .002 inches (conductor), .408 inches (inner shield), .420 ± .005 inches (outer shield), .448 inches (jacket), .488 ± .007 inches (final assembly).
Properties:
- Temperature Range: -55°C to 200°C, suitable for extreme environments.
- Impedance: 50 ± 2 ohms, providing consistent performance across a wide frequency range.
- Velocity of Propagation: 77%, ensuring rapid signal transmission.
- Capacitance: 26 pF/ft., minimizing signal loss.
- Attenuation:
- 0.8 dB/100 ft. @ 50 MHz
- 1.2 dB/100 ft. @ 100 MHz
- 2.5 dB/100 ft. @ 500 MHz
- 3.5 dB/100 ft. @ 1,000 MHz
- 6.4 dB/100 ft. @ 3,000 MHz
- 8.5 dB/100 ft. @ 5,000 MHz
- 12.7 dB/100 ft. @ 10,000 MHz
- Weight: Maximum of 235 lbs./1,000 ft., ensuring ease of installation and handling.
Manufactured by Thermax, this coaxial cable embodies precision and advanced engineering. The proprietary construction ensures unmatched performance, making it the ideal choice for demanding applications.
