MX120-26-37S-5
OUT OF STOCK
Inventory Location
| Tennessee | 0 FT |
Disclaimer
Imagery is for general reference and may not represent the actual part number. Not all products are available to every country or customer. Inventory updated daily. All stock is subject to prior sale.

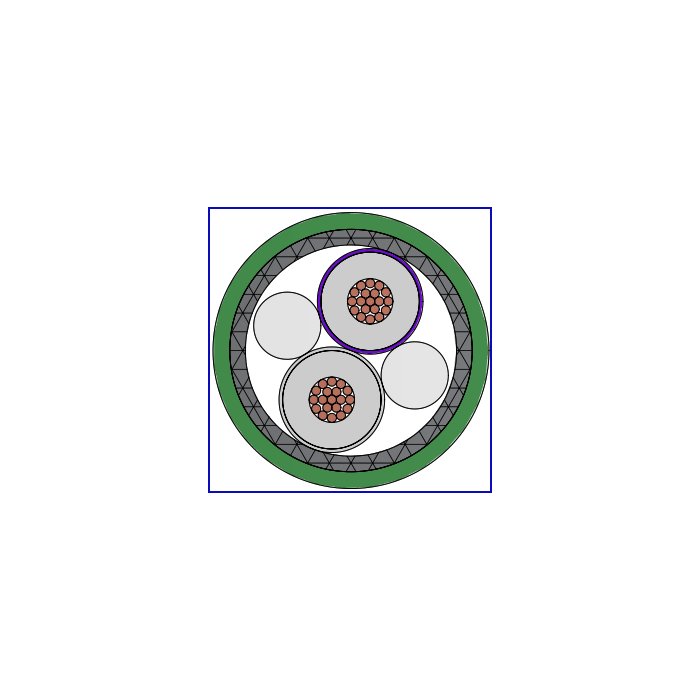

| Item Description | Carlisle 120 Ohm 26 AWG Shielded Databus Cable (Part Number: MX120-26-37S-5): Elevate your connectivity solutions with the Carlisle Shielded Databus Cable, engineered for superior signal integrity and robust protection. This high-performance cable feature |
| Manufacturers | Carlisle |
| Manufacturer Part Number | MX120-26-37S-5 |
| Gauge | 26 |
| Cap. pF/Ft | 11.5 |
| REACH Compliant (Article 33) | Yes |
| Vp % | 75 |
| Weight lbs/1000 ft | 12 |
| Impedance | 120 |
| Manufacturer | Carlisle Interconnect |
| Conductor Count | 2 |
| Temp | 200 |
| Min Operating Temperature | -65 |
| Overall Diameter | 0.2949 |
| Insulation | Extruded PTFE/PTFE Composite |
| Shield | SPC flat braid92% min. coverage |
| Inner Conductor Material | 26 AWG 19x38 Silver Plated High Strength Copper Alloy |
| Color | Inners: White & Violet. Outer Jacket: Green (other colors available, specify when quoting) |
| Cable Type/Protocol | CAN Bus |
High-Performance 120 Ohm Shielded Databus Cable by Carlisle Interconnect Technologies
Enhance your critical data transmission with Carlisle Interconnect Technologies’ 120 Ohm 26 AWG Shielded Databus Cable, expertly designed for superior reliability and performance. Our cables are engineered with precision using 26 AWG high-strength copper alloy conductors and a robust silver-plated copper braid shield, ensuring minimal signal attenuation and maximum protection against EMI/RFI interference.
Key Features:
- Optimal Signal Integrity: Experience reduced signal loss with 26 AWG, 19x38 silver-plated, high-strength copper alloy conductors and 92% minimum coverage shielding.
- Durable and Flexible: The cable features an extruded PTFE/PTFE composite jacket and fillers, which provide exceptional durability and a minimum bend radius of 1.0 inch, ensuring easy installation in tight spaces.
- High Temperature Resistance: With an operating temperature range of -65°C to +200°C, our cables are built to perform in the most demanding environments.
- Customizable: Available in standard green with options for white and violet colors. Specify your color requirements at the time of order to match your system’s aesthetics and coding.
Technical Specifications:
- Impedance: 120 Ohms± 10% (1 MHz)
- Capacitance: 11.5 pF/ft. Nominal
- Velocity of Propagation: 75% Minimum
- Dielectric Withstand: 1000 VRMS
Compliance and Safety:
- RoHS Compliant: Ensuring environmental safety and sustainability.
- FAR 25 Appendix F: Meets flammability requirements for aerospace applications.
Whether you’re upgrading your aerospace systems, industrial networks, or data centers, trust Carlisle’s Shielded Databus Cable for unmatched performance and reliability.
Get Your Custom Quote Today! Contact Carlisle Interconnect Technologies for pricing and availability. Specify part number MX120-26-37S-5 when ordering.
Note: This cable is confidential and contains proprietary information from Carlisle Interconnect Technologies and should not be disclosed without written consent.
