M81044/12-16-9
IN STOCK
Volume Pricing
| 1 | $0.33 / FT |
| 250 | $0.32 / FT |
| 500 | $0.30 / FT |
| 1000 | $0.29 / FT |
| 2500 | $0.28 / FT |
Inventory Location
| Arizona | 6068 FT |
| Chihuahua | 0 FT |
| Gelnhausen | 0 FT |
| Mexicali | 0 FT |
| Queretaro | 0 FT |
| Swindon | 0 FT |
| Tennessee | 224571 FT |
| Texas | 0 FT |
Disclaimer

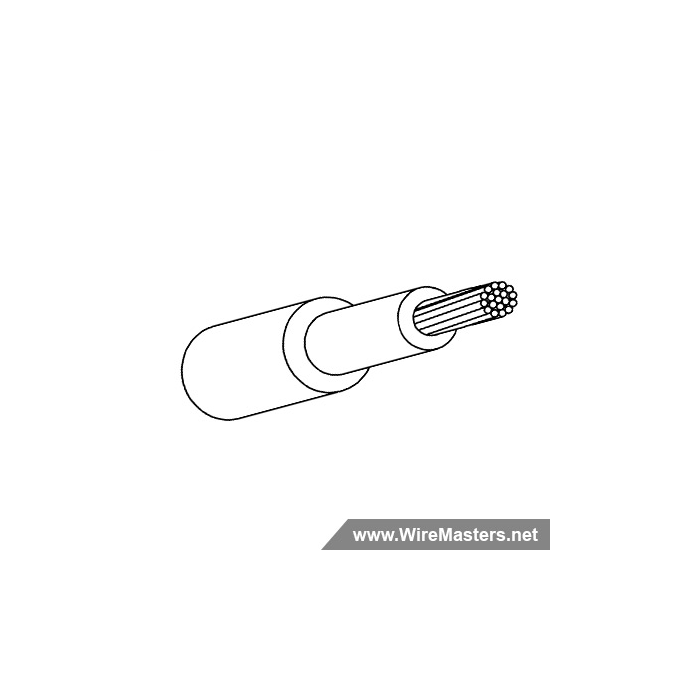

Imagery is for general reference and may not represent the actual part number. Not all products are available to every country or customer. Inventory updated daily. All stock is subject to prior sale.
| Item Extra Description | MIL-W-81044/12-16-9 | SAE AS 81044/12-16-9 |
| Item Description | M81044/12-16-9 is a 16 AWG Tin Plated Copper, Cross-linked extruded polyalkene and Cross Linked Polyvinyledene Fluoride Jacketed Wire, 150° C. |
| Price Unit | MFT |
| Manufacturers | TE Connectivity, Marmon Aerospace & Defense, QPL Sources |
| Manufacturer Part Number | 81044/12-16-9 |
| Cable Code Designator | ML |
| Gauge | 16 |
| Color Code | White |
| Conductor Type | Tin Plated Copper |
| Insulation | XL Extruded Polyalkene and XLPVDF |
| Temp | 150 |
| Voltage Rating | 600 |
| Max Temp | 150 |
M81044/12 is a lightweight lead wire with a light wall made up of an extruded, cross-linked polyalkene insulation and an extruded, cross linked polyvinylidene fluoride (PVDF) jacket. This wire is used in high density cable and harnessing applications because of its size and weight advantages. It also has excellent resistance to cut-through, abrasion, cold flow, shrink back, notch propagation, and common chemicals. These wires also strip and stripe easily, may be potted, and have low smoke characteristics.
