M25038/1-22-9
SKU
WM25038/1-22-9
M25038/1-22-9 is a 22 AWG, White, Nickel Plated Copper, Inorganic Barrier/TFE Tape/Wrapped Sealed TFE Glass Braid Jacketed Wire, rated for 260° C. QPL material with certifications and test reports.
OUT OF STOCK
0 FT
Manufacturer Lead Time 168 days
Requires Quote
Inventory Location
| Arizona | 0 FT |
| Tennessee | 0 FT |
| Texas | 0 FT |
Disclaimer
Imagery is for general reference and may not represent the actual part number. Not all products are available to every country or customer. Inventory updated daily. All stock is subject to prior sale.
Specifications
| Item Extra Description | MIL-W-25038/1-22-9 | SAE AS 25038/1-22-9 |
| Item Description | M25038/1-22-9 is a 22 AWG, White, Nickel Plated Copper, Inorganic Barrier/TFE Tape/Wrapped Sealed TFE Glass Braid Jacketed Wire, rated for 260° C. QPL material with certifications and test reports. |
| Price Unit | MFT |
| Lead Time (Days) | 168 |
| Manufacturer Part Number | 25038/1-22-9 |
| Cable Code Designator | JA |
| Gauge | 22 |
| Color Code | White |
| Conductor Type | Nickel Plated Copper |
| Insulation | PTFE Tape |
| Temp | 260 |
| Voltage Rating | 600 |
Product Overview

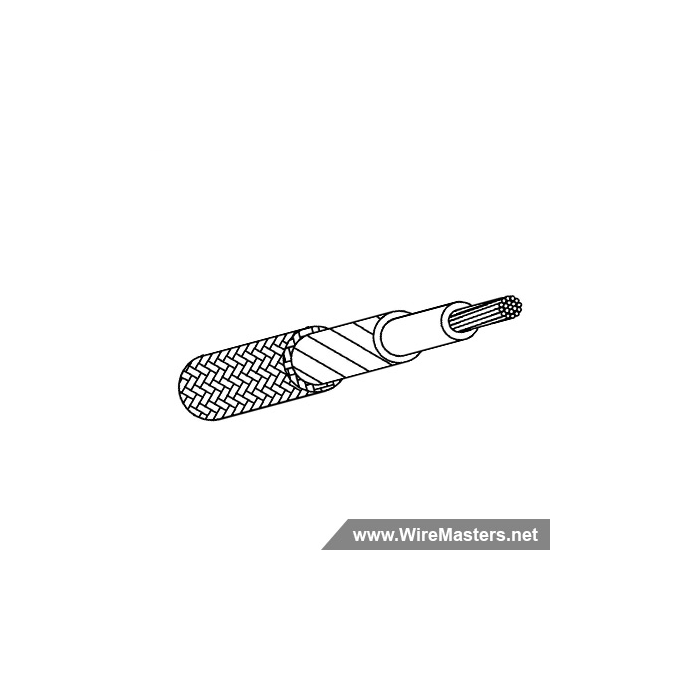

M25038/1 wires are insulated with a non-asbestos inorganic barrier, a layer of tetrafluoroethylene (TFE) tape and a heavy duty, sealed TFE coated glass braid. This heavy-duty wrap offers excellent mechanical performance and abrasion resistance. This design is best for applications where wires must operate in extremely harsh environments, under vibration and with direct flame exposure.
