M22759/84-8-9
IN STOCK
Inventory Location
| Arizona | 0 FT |
| Tennessee | 6618 FT |
Disclaimers
Imagery is for general reference and may not represent the actual part number. Not all products are available to every country or customer. Inventory updated daily. All stock is subject to prior sale.
| Manufacturers | AmphenolCIT, Garg Associates, QPL Sources |
| Item Description | M22759/84-8-9 is a Nickel Plated Copper, 4 Layers of PTFE Covered with Polyimide Braid Jacketed Wire, 260° C. QPL material with certifications and test reports. |
| Item Extra Description | MIL-W-22759/84-8-9 | SAE AS 22759/84-8-9 |
| Manufacturer Part Number | 22759/84-8-9 |
| Price Unit | MFT |
| Gauge | 8 |
| Color Code | White |
| Conductor Type | Nickel Plated Copper |
| Insulation | Composite |
| Temp | 260 |
| Voltage Rating | 600 |

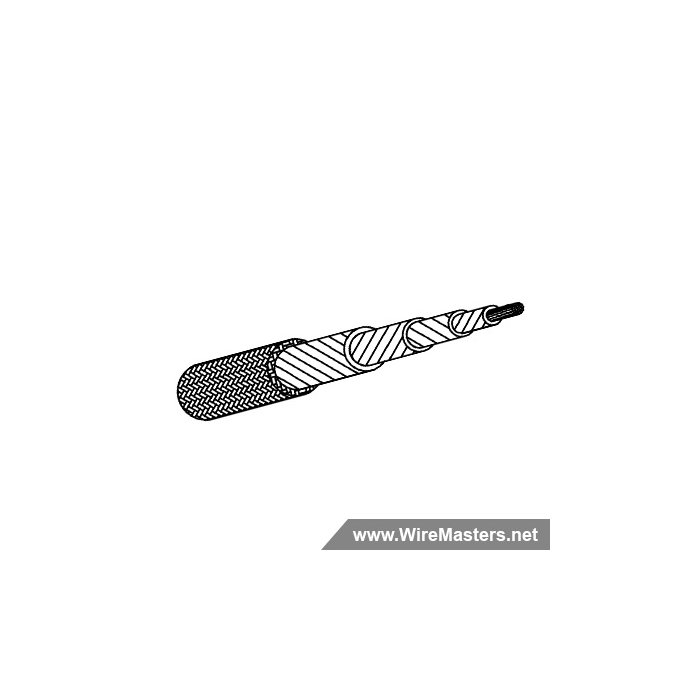

M22759/84 wires are large size, high-performance aerospace hook-up wires insulated with four layers of polytetrafluoroethylene (PTFE) tape and PTFE/ polyimide/PTFE tape, with an outer layer of polyamide braid for superior abrasion resistance. The preferred color of the polyimide braid is dark green with the color designator 5D. White is an acceptable alternate with a color designator 9. These wires are designed for aerospace and other applications requiring excellent thermal stability and abrasion resistance.
