GF120T-24CANB
IN STOCK
Volume Pricing
| 1 | $6.35 / FT |
| 250 | $6.07 / FT |
| 500 | $5.81 / FT |
| 1000 | $5.57 / FT |
| 2500 | $5.35 / FT |
Inventory Location
| Arizona | 0 FT |
| Gelnhausen | 0 FT |
| Mexicali | 0 FT |
| Queretaro | 0 FT |
| Swindon | 0 FT |
| Tennessee | 8468 FT |
| Texas | 0 FT |
Disclaimer
Imagery is for general reference and may not represent the actual part number. Not all products are available to every country or customer. Inventory updated daily. All stock is subject to prior sale.
| Item Extra Description | GF120T-24CANB GARMIN APPROVED CAN BUS CABLE |
| Item Description | GIGAFLIGHT's GF120T-24CANB is a laser wire markable, Aerospace- grade CAN Bus, approved by Garmin, for use with Garmin’s CAN Bus System architectures. CAN Bus is designed to be a 120 ohm Twinax, which means the insulation thickness is increased to achieve |
| Price Unit | MFT |
| Manufacturers | GIGAFLIGHT Connectivity Inc |
| Manufacturer Part Number | GF120T-24CANB |
| Capacitance | 11.5 |
| Overall Diameter | 0.145 |
| Velocity of Propigation (VP) | 75 |
| Weight | 17.5 |
| Dielectric | Solid/Foamed High-Temp Fluoropolymer |
| Outer Shield | Tin Plated Copper Flat Braid |
| Jacket Type | White, Laser-Markable Tefzel |
| Impedance | 120 |
| Temp | -55 |
| Conductor Count | 2 |
INNOVATIVELY DESIGNED CAN BUS

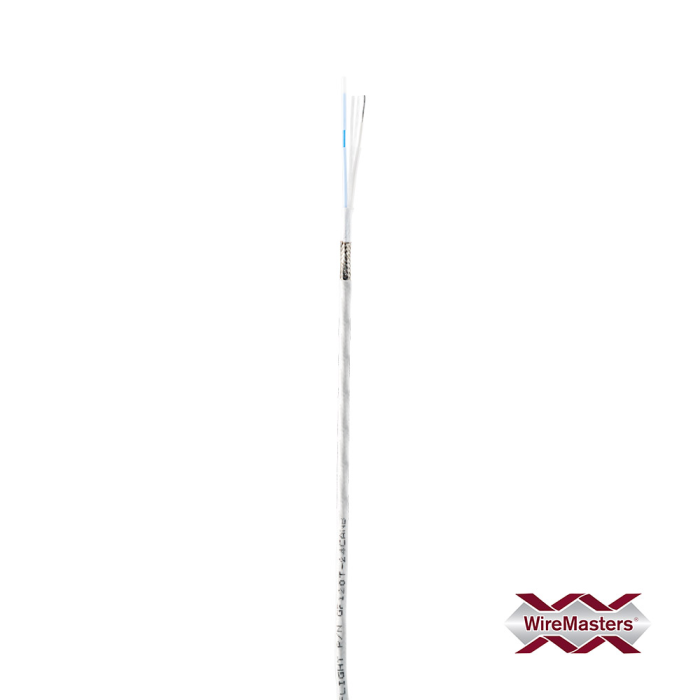

The GF120T-24CANB is a laser wire markable, aerospace-grade CAN Bus approved by Garmin for use with Garmin’s CAN Bus System architectures. CAN Bus is designed to be a 120 ohm Twinax, which means the insulation thickness is increased to achieve 120 ohms between the conductors. The increased thickness creates an issue with contact extraction because the insulation OD is larger than the contact. With GIGAFLIGHT’s CAN Bus, we have solved this issue by using a dual-wall insulation design.
The first layer of insulation is a thinner wall high-temp PFA with a finished diameter less than the contact OD. The second layer of insulation is a foamed FEP that provides the separation between the wires to maintain a 120 ohms-controlled impedance throughout. A section of the foamed insulation is removed in the termination process to provide access for contact removal. An added benefit of a dual-wall construction is that the solid insulation eliminates insulation creep back, a common issue with an all foam insulation design.
