E6A6824
IN STOCK
Volume Pricing
| 1 | $30.19 / FT |
| 250 | $28.84 / FT |
| 500 | $27.62 / FT |
| 1000 | $26.49 / FT |
| 2500 | $25.45 / FT |
Inventory Location
| Arizona | 4469 FT |
| Mexicali | 0 FT |
| Queretaro | 0 FT |
| Swindon | 0 FT |
| Tennessee | 0 FT |
| Texas | 0 FT |
Disclaimer
Imagery is for general reference and may not represent the actual part number. Not all products are available to every country or customer. Inventory updated daily. All stock is subject to prior sale.
| Price Unit | MFT |
| Item Extra Description | PIC’s DataMATES Ethernet cables incorporate innovative design features that provide maximum electrical performance in a small, light weight and flexible package. PIC’s E6A6824 delivers 10 Gigabit (ANSI/TIA-568 Category 6a) performance up to 246 ft. Data t |
| Item Description | E6A6824 - Speed Rating: 10G BASE-T , Data Conductor: 24 AWG SPCA, Jacket: White Fluoropolymer Tape Laser Markable. From PIC Wire & Cable |
| Gauge | 24 |
| Impedance | 100 |
| Manufacturer | PIC Wire and Cable |
| Conductor Count | 4 Pair |
| Temp | 200 |
| Overall Diameter | 0.26 |
| Weight | 4.4 |
| Insulation | PTFE |
| Shield | Silver Plated Copper |
| Inner Conductor Material | Silver-Plated High Strength Copper Alloy Conductors |
| Color | White |
| Cable Type/Protocol | Ethernet Cat6a |

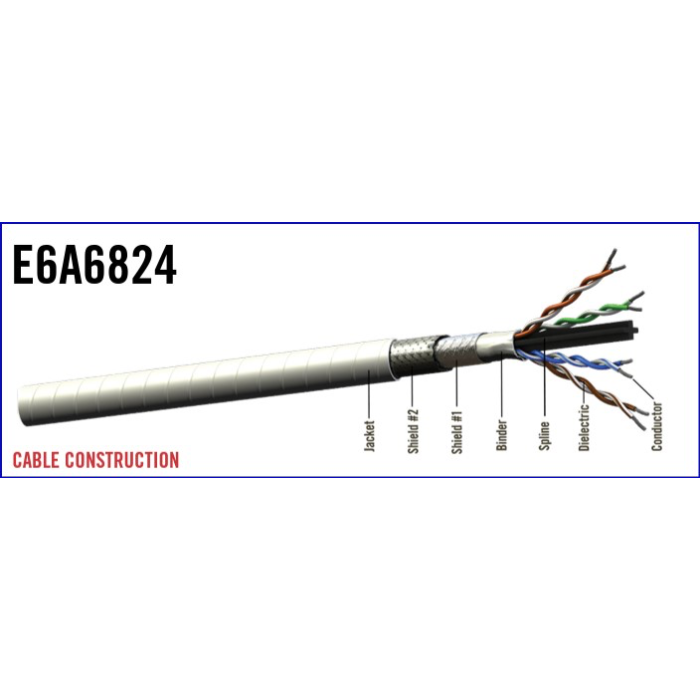

PIC’s DataMATES Ethernet cables incorporate innovative design features that provide maximum electrical performance in a small, light weight and flexible package. PIC’s E6A6824 delivers 10 Gigabit (ANSI/TIA-568 Category 6a) performance up to 246 ft. Data transmission aboard aircraft faces more severe environmental and EMI situations than conventional LAN systems in commercial buildings, hence special measures have been taken to preserve technical performance. Silver-plated copper conductors and shielding assure uniform conductivity with excellent solderability. An PTFE jacket which is laser markable passed EN3475-503 Scrape Abrasion testing and is also flexible for ease of installation. E6A6824 is ideal for harsh environment applications that demand high reliability, maximum flexibility and light weight, such as cabin management, in-flight entertainment, internet backbones. It is Skydrol resistant, RoHS compliant and passes the FAA flammability requirements of FAR Part 23 and 25, Appendix F.
