E10224
IN STOCK
Volume Pricing
| 1 | $10.67 / FT |
| 250 | $10.20 / FT |
| 500 | $9.76 / FT |
| 1000 | $9.37 / FT |
| 2500 | $9.00 / FT |
Inventory Location
| Arizona | 63 FT |
| Langenselbold | 0 FT |
| Mexicali | 0 FT |
| Queretaro | 0 FT |
| Swindon | 0 FT |
| Tennessee | 12701 FT |
| Texas | 359 FT |
Disclaimers
Imagery is for general reference and may not represent the actual part number. Not all products are available to every country or customer. Inventory updated daily. All stock is subject to prior sale.
Please note that all internationally sourced stock may be subject to a lead time of up to 3 weeks to be shipped, depending on your location.
| Price Unit | MFT |
| Item Extra Description | E10224 - Ethernet Cable |
| Item Description | E10224 |
| Manufacturers | PIC Wire & Cable |
| Manufacturer Part Number | E10224 |
| Gauge | 24 |
| Min Temp | -55 |
| Max Temp | 150 |
| Cap. pF/Ft | 13 |
| Minimum Bend Radius | 0.9 |
| Dielectric | FEP |
| Vp % | 80 |
| Weight lbs/1000 ft | 21.8 |
| Impedance | 90 |
| Manufacturer | PIC Wire and Cable |
| NSN | 5995-01-629-6639 |
| Conductor Count | 1 Pair |
| Temp | -55 |
| Min Operating Temperature | -55 |
| Overall Diameter | 0.18 |
| Weight | 0.0351 |
| Insulation | FEP, Translucent Blue |
| Inner Conductor Material | Silver-Plated Copper |
| Color | White/Blue |
| Cable Type/Protocol | Ethernet Cat5e |

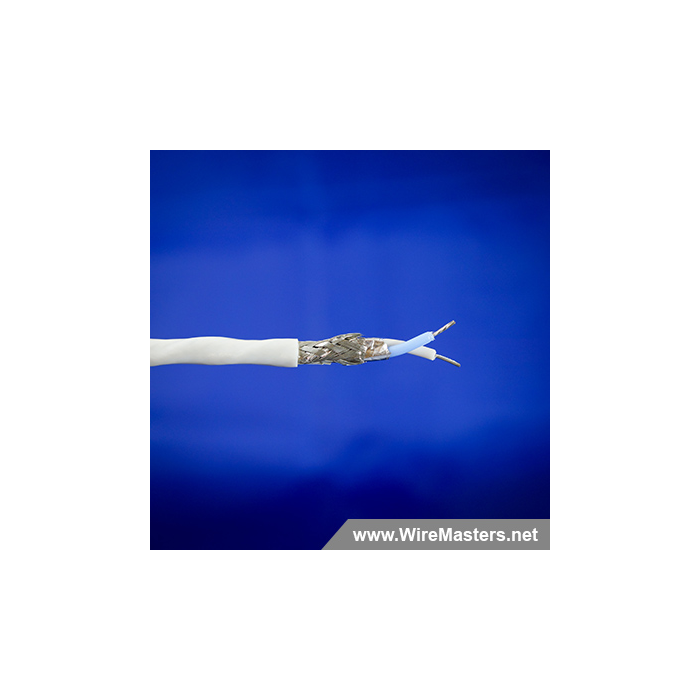

The E10224 is a 1-pair, 10/100 Base-T CAT5e cable (exceeding ANSI/TIA-568-C.2 CAT 5e Channel Requirements) with a smaller overall diameter and weight while retaining performance and required operating parameters. The twisted-pair construction of silver-plated copper alloy conductors assures uniform conductivity with excellent solderability. The 100% foil and 90% braided shielding provide mechanical strength and EMI protection and maintain weight and flexibility. A durable FEP jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation. E10224 is suitable for airborne 10/100 Base-T CAT5e Local Area Network applications such as cabin management systems (CMS), in-flight entertainment (IFE), and Ethernet backbones.
