2524H0524-9CS3493
OUT OF STOCK
Inventory Location
| Arizona | 0 FT |
| Mexicali | 0 FT |
| Queretaro | 0 FT |
| Tennessee | 0 FT |
| Texas | 0 FT |
Disclaimer
Imagery is for general reference and may not represent the actual part number. Not all products are available to every country or customer. Inventory updated daily. All stock is subject to prior sale.
| Item Description | The 2524H0524 CHEMINAX Radio Frequency Twin Conductor Cable offers 125 Ohm impedance with exceptional performance and durability. Featuring high-quality silver-coated copper conductors, superior shielding, and a robust ETFE jacket, this cable is ideal for |
| Price Unit | MFT |
| Manufacturers | TE Connectivity |
| Lead Time (Days) | 93 |
| Capacitance | 12 |
| Velocity of Propigation (VP) | 77 |
| Manufacturer | TE Connectivity |
| Weight | 17.7 |
| Dielectric | Rayfoam H |
| Outer Shield | 38 AWG Silver Coated Copper |
| Jacket Type | ETFE |
| Impedance | 125 |
| Temp | -55 |
| OuterJacket | ETFE Jacket (White) Laser Markable |
| Center Conductor | Silver-Coated High Strength Copper Alloy |
Introducing the 2524H0524 CHEMINAX Radio Frequency Twin Conductor Cable—engineered to deliver exceptional performance and reliability in demanding environments. This 125 Ohm cable is meticulously crafted for optimal electrical and physical properties, making it the ideal choice for advanced RF applications.
Key Features:
- Impedance & Capacitance: With a characteristic impedance of 125 ± 10 Ohms and a mutual capacitance of 12.0 pF/ft (nominal), this cable ensures superior signal integrity and minimal loss.

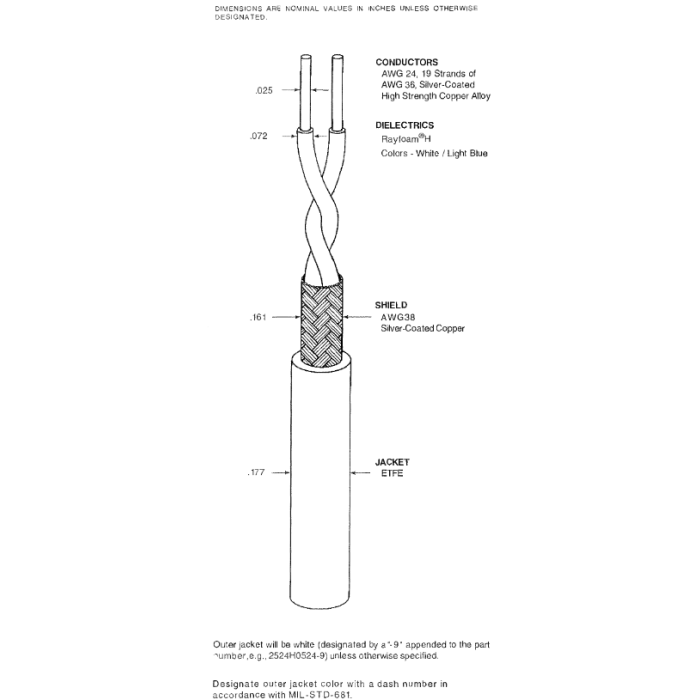

- Conductor Quality: Constructed with AWG 24, 19 strands of AWG 36, silver-coated high strength copper alloy, providing robust conductivity and durability.
- High Velocity of Propagation: Achieves 77% (nominal), ensuring faster signal transmission.
- Reliable Insulation & Dielectrics: Features a high-performance air-foam dielectric, color-coded in white and light blue, enhancing insulation and reducing crosstalk.
- Shielding: Equipped with an AWG 38 silver-coated copper shield, offering 90% (minimum) coverage for superior EMI protection.
- Durable Jacket: The ETFE jacket ensures high resistance to environmental factors, including aging stability, flammability, heat shock, and cold bend, performing reliably at temperatures ranging from -55°C to 135°C.
- Voltage Withstand: Withstands 1.0kV (rms) at 60Hz and 6.0kV (peak), ensuring robust electrical performance under varying conditions.
- Mechanical Strength: Boasts impressive tensile strength and elongation properties, with a jacket tensile strength of 5000 lbf/in² (minimum) and elongation of 150% (minimum).
Additional Specifications:
- Conductor Resistance: 27.5 ohms/1000ft (nominal)
- Insulation Resistance: 10,000 megohms (minimum) for 1000 ft.
- Jacket Flaws & Spark Test: Ensures high-quality insulation and protection.
- Weight: 17.7 lbs/1000ft (nominal)
- Customization: The outer jacket is available in white by default (designated by a -9 appended to the part number, e.g., 2524H0524-9). Other colors can be specified according to MIL-STD-681.
Compliance & Quality Assurance:
This specification sheet is a part of the latest issue of Raychem Specification 1200 and takes precedence over any referenced documents. All dimensions are nominal values in inches unless otherwise specified.
