10613-24-9
OUT OF STOCK
Volume Pricing
| 1 | $4.88 / FT |
| 250 | $4.66 / FT |
| 500 | $4.46 / FT |
| 1000 | $4.28 / FT |
| 2500 | $4.11 / FT |
Inventory Location
| Arizona | 0 FT |
| Gelnhausen | 0 FT |
| Queretaro | 0 FT |
| Tennessee | 0 FT |
| Texas | 0 FT |
Disclaimer
Imagery is for general reference and may not represent the actual part number. Not all products are available to every country or customer. Inventory updated daily. All stock is subject to prior sale.

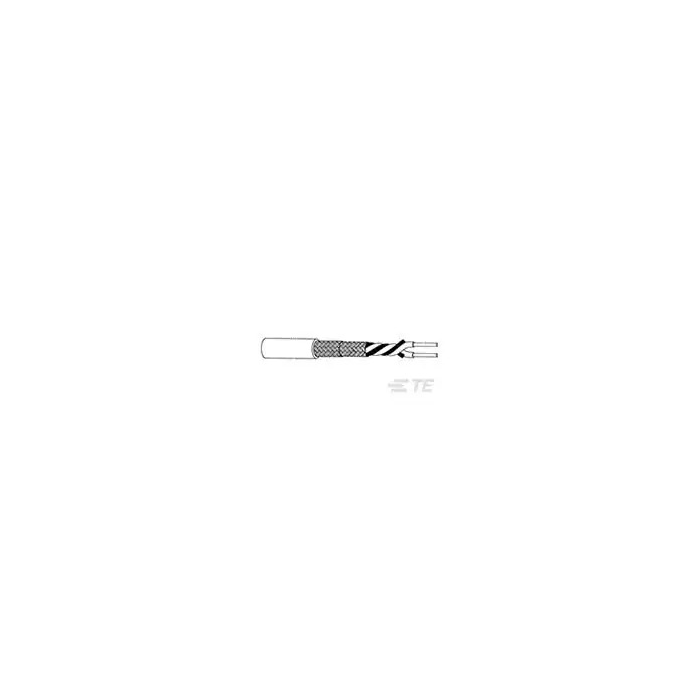

| Item Description | CHEMINAX - 77 OHM, AWG 24, DATA BUS CABLE, MIL-STD-1553 |
| Price Unit | MFT |
| Lead Time (Days) | 303 |
| Capacitance | 30 |
| Overall Diameter | 3.71 |
| Outer Shield | Tin Plated Copper |
| Jacket Type | Radiation Crosslinked Modifed EFFE |
| Impedance | 77 |
| Temp | 200 |
| OuterJacket | Crosslinked Modified ETFE |
| Shield | Tin Plated Copper |
| Conductor Count | 2 |
| Center Conductor | Silver-Coated High Strength Copper Alloy |
| Max Temp | 200 |
Cheminax controlled electrical cables are used in the aircraft and aerospace industries. They have a wide range of applications in missiles, avionics, radiofrequency and microwave systems, computers, security and surveillance systems, and communications.
Cheminax coaxial cables were designed to solve interconnect problems in electronic systems, such as computers, military equipment, and other areas of high-density packing, where cables are required to perform to more exacting specifications than standard radio-grade (RG) constructions.
TE’s advanced materials technology has allowed the design and development of Cheminax miniature coaxial cables that offer substantial savings in size and weight while improving mechanical performance and reducing attenuation.
Cables can be designed that are either smaller and lighter than standard RG cables or provide significantly lower attenuation and capacitance with no significant increase in size.
