M81044/9-12-9/0 TP
OUT OF STOCK
Inventory Location
| Tennessee | 0 FT |
Disclaimer
Imagery is for general reference and may not represent the actual part number. Not all products are available to every country or customer. Inventory updated daily. All stock is subject to prior sale.
| Item Extra Description | MIL-W-81044/9-12-9/0 TP | SAE AS 81044/9-12-9/0 TP |
| Item Description | Due to current industry shortages, please expect a lead time of approximately 16 - 22 weeks.M81044/9-12-9/0 TP is a 12 AWG Tin Plated Copper, cross-linked extruded polyalkene Jacketed Wire, 150°C. |
| Price Unit | MFT |
| Manufacturers | TE Connectivity, Harbour Industries, Marmon Aerospace & Defense, Specialty Cable Corporation, QPL Sources |
| Manufacturer Part Number | 81044/09-12-9/0 TP |
| Cable Code Designator | MH |
| Gauge | 12 |
| Conductor Type | Tin Plated Copper |
| Insulation | XL Extruded Polyalkene and XLPVDF |
| Temp | 150 |
| Voltage Rating | 600 |

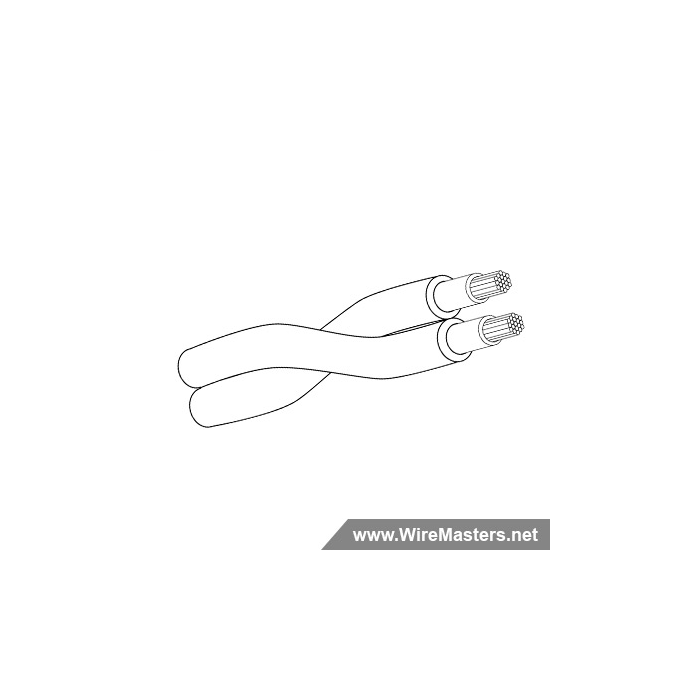

M81044/9 is a lightweight lead wire with a medium wall made up of an extruded, cross-linked polyalkene insulation with an extruded, cross-linked polyvinylidene fluoride (PVDF) jacket. This wire is used in high density cable and harnessing applications because of its size and weight advantages. It also has excellent resistance to cut-through, abrasion, cold flow, shrink back, notch propagation, and common chemicals. These wires also strip and stripe easily, may be potted and have low smoke characteristics.
