E6A0824
IN STOCK
Volume Pricing
| 1 | $27.59 / FT |
| 250 | $26.36 / FT |
| 500 | $25.24 / FT |
| 1000 | $24.21 / FT |
| 2500 | $23.26 / FT |
Inventory Location
| Arizona | 0 FT |
| Langenselbold | 0 FT |
| Mexicali | 0 FT |
| Queretaro | 0 FT |
| Tennessee | 5177 FT |
| Texas | 8 FT |
Disclaimers
Imagery is for general reference and may not represent the actual part number. Not all products are available to every country or customer. Inventory updated daily. All stock is subject to prior sale.
Please note that all internationally sourced stock may be subject to a lead time of up to 3 weeks to be shipped, depending on your location.
| Manufacturers | PIC Wire & Cable |
| Item Description | E6A0824 |
| Item Extra Description | E6A0824 - Ethernet Cable |
| Lead Time (Days) | 70 |
| Manufacturer Part Number | E6A0824 |
| Price Unit | MFT |
| NSN | 6145-01-674-9167 |
| Series | High Speed Data Cables |
| Gauge | 24 |
| Min Temp | -55 |
| Max Temp | 150 |
| Dielectric/Insulation | FEP |
| Cap. pF/Ft | 14.5 |
| Dielectric | �FEP |
| Primary Wire Colors | Pair #1: Blue, White/Blue Stripe. Pair #2: Orange, White/Orange Stripe. Pair #3: Green, White/Green Stripe. Pair #4: Brown, White/Brown Stripe. |
| Vp % | 70 |
| Weight lbs/1000 ft | 52.80 |
| Impedance | 75 |
| Manufacturer | PIC Wire and Cable |
| Conductor Count | 4 Pair |
| Temp | -55 |
| Min Operating Temperature | -55 |
| Overall Diameter | 0.12 |
| Voltage Rating | 2.00 |
| Weight | 0.016 |
| Insulation | FEP, Translucent Blue |
| Inner Conductor Material | Silver Plated Copper |
| Color | Translucent Blue |
| Cable Type/Protocol | Ethernet Cat6a |

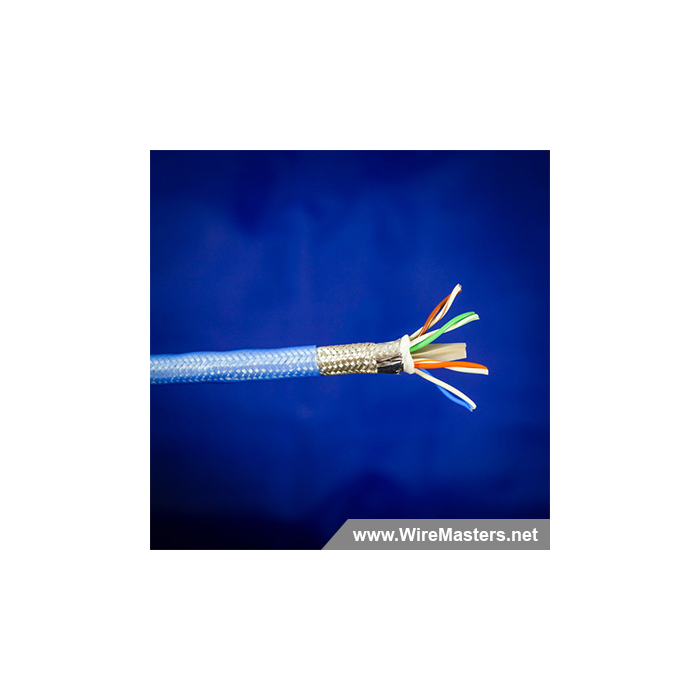

The E6A0824 is a 4-Pair, 10G Base-T Cat 6a Ethernet cable (exceeding ANSI/TIA-568-C.2 CAT 6a Channel Requirements) that incorporates innovative design features to provide maximum electrical performance in a small, lightweight, and flexible package. The E6A0824’s stranded silver-plated copper conductors are designed for high vibration environments, then twisted-pair at different lay lengths to effectively reduce inductive interference. The 100% foil and 90% braided shielding serve to further protect against EMI. A fluoropolymer jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation.
